Eigenschaften

Technische Daten

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Construction worksÂ , Energy & Mining, Rubber plastic

Showroom Location: Canada, Turkey, United Kingdom, United States, France, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Romania, South Africa, Kazakhstan

Condition: new

Type: Air-cooled

Voltage: 3PH~220V/380/415V~50HZ/60HZ

Dimension(L*W*H): 1150*620*1355mm

Weight: 185kg

Warranty: 2 years, 12 Months

Power: 5.4KW

Working Temperature Range: 5-35â„ƒ

Key Selling Points: Long Service Life

After Warranty Service: Video technical support, Online support

Local ServiceÂ Location: United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Russia, Thailand, Japan, Malaysia, Australia, South Korea, South Africa, Kazakhstan, Tajikistan

Zertifizierung: ce, RoHS

After-sales Service Provided: Video technical support, Online support, Engineers available to service machinery overseas

Compressor Brand: Copeland \ Danfoss \ Sanyo\Hanbell

Grundinformation

Zertifizierung: ce, RoHS

Zahlung und Versand AGB

Packaging Details: standard wooden box

Supply Ability: 300 Set/Sets per Month

Produkt-Beschreibung

Company Information

SHENZHEN DANNICE MACHINERY CO.,LTD.CHINA

Shenzhen Dannice Machinery Co., Ltd. is attached to Tanwan Dannice Group which set up in 2002 with its head office in Taiwan. Our group mainly deals with research and production of Industrial refrigeration machines and peripheral auxiliary cooling equipment of injection molding machines by bringing in German high technology. In order to satisfy the needs of the market, Shenzhen Dannice Machinery Co., Ltd. was founded on 2005 in Shenzhen SEZ, southeast China Mainland. Our company is a high-tech enterprise which concentrates on research and development, design, production and sales and after-sales service. We mainly produce industrial chillers, oil coolers,die heaters, dehumidifiers, cold storage units, ultra-low temp water cold machines, air cold machines, electroplating water chillers, screw freezers, cold-hot amphibious temp control machines, laser cold machines and other high-tech equipment.

Product Description

Working Diagram

Parameters Table

Specifications

Model				DNC-5A
nominal cooling capacity		kcal/h 50HZ/60HZ		11988/14386
		Kw 50HZ/60HZ		13.94/16.73
Max power consumption		kw		5.75
Full load		Amp		13.8
power source				3PH - 380V/415V - 50HZ /60NZ 3PH -200V/220V - 50HZ /60NZ
refrigerant	type			R22/R407c/134a/404A/410A
	control			Capillary/external balance of thermal expansion valve
compressor	type			hermetic scroll/Piston
	power	kw		4.55
condenser	type			Efficient aluminum finned copper sleeve+low noise external rotor fan
	air volume	m³/h		5000
	fan motor	kw		0.19×2
evaporator	type			Tank coil/Dry shell and tube /Stainless steel plate evaporate
	Tank volume	L		60
	coolant flow	m³/h		2.4
	inlet and outlet connection(BSP)	inch		1
Pump	Power	Kw		0.75
	Max flow rate	m³/h		8.1
	Max head	M		30
safety devices	Compressor overheating protection,over-current protection,high and low pressure protection,over-temperature protection,traffic protection,phase sequence/phase loss protection,low level protection,frost protection
dimension		mm	11505601215
weight		kg	185

CE certification

Components

Production Environme

Exhibitions

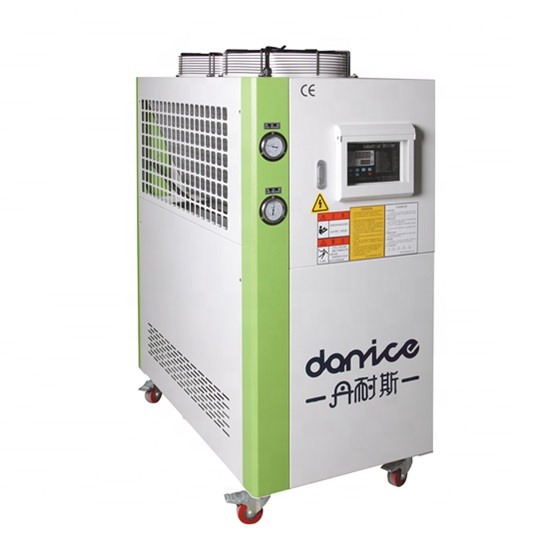

Factory Air Cooled 5P Small Water Chiller Unit , 3 Ton Industrial Chiller
